Common Motion Sensor Placement Mistakes: An Analytical Guide

Motion detection systems operate on strict physical principles. Hardware quality rarely causes system failures in modern environments. Most operational issues stem from human error during the installation phase. Common Motion Sensor Placement Mistakes. Installers frequently miscalculate spatial dynamics, thermal backgrounds, and structural interference. Such miscalculations lead to compromised security networks and inefficient lighting automation.

System integrators must treat placement as a structural engineering challenge. Precision dictates the difference between flawless execution and constant false alarms. Environmental factors constantly interact with detection fields. Recognizing these variables prevents long-term maintenance headaches.

Engineers rely on contextual awareness to map detection zones properly. Amateurs often ignore invisible variables like HVAC drafts or afternoon sunlight. Professionals build robust systems by anticipating these environmental shifts. Mastery requires understanding both the technology and the specific architectural constraints of the space.

Understanding “common motion sensor placement mistakes”

Analyzing common motion sensor placement mistakes requires dismantling fundamental assumptions about sensor capabilities. Devices do not “see” movement in a human sense. Passive Infrared (PIR) technology registers sudden changes in thermal energy across grid zones. Microwave sensors emit pulses and measure the reflection timing. Ultrasonic units track high-frequency sound wave disruption.

Errors occur when installers project human vision onto these distinct detection mechanisms. A clear line of sight does not guarantee functional motion tracking. Thermal noise easily blocks PIR sensors, while microwaves penetrate drywall and trigger unintended alarms.

The Illusion of Uniform Coverage

Many technicians believe a single sensor covers an entire room evenly. Detection sensitivity degrades rapidly at the edges of a coverage cone. Central zones capture minor twitches, but peripheral areas might miss walking adults.

Environmental Interaction Complexities

Objects within a room change temperature throughout the day. Direct sunlight heats floors, creating thermal columns that mimic human bodies. Glass surfaces block infrared energy completely. Technicians who fail to account for these environmental interactions create unreliable security perimeters.

Deep Contextual Background

Early motion detection relied on rudimentary photoelectric beams. These systems required physical interruption of a single light line. Burglars easily bypassed them by stepping over the beam. Technological evolution pushed the industry toward volumetric detection.

PIR technology revolutionized the market in the late twentieth century. It offered cost-effective, room-wide coverage without complex wiring. Microwave and ultrasonic variants followed shortly after.

Evolution of Detection Philosophy

Initial installation philosophies prioritized maximum area coverage over precision. Technicians placed units in high corners to view the largest possible floor space. This brute-force approach generated immense volumes of false alarms. Spiders, heating vents, and passing cars frequently triggered early systems.

Shift Toward Strategic Micro-Zoning

Modern practices emphasize micro-zoning and deliberate blind spots. Engineers now restrict sensor views to highly probable traversal paths. Strategic limitation improves reliability far more than expanding the field of view.

Conceptual Frameworks and Mental Models Common Motion Sensor Placement Mistakes

Professionals utilize specific frameworks to design sensor layouts. These mental models prevent common motion sensor placement mistakes during the drafting phase.

The Cross-Path Principle

PIR sensors detect lateral movement efficiently. They struggle to identify objects walking directly toward the lens. Installers must position devices so intruders cross the field of view perpendicularly. Pointing a PIR unit directly at a door invites failure.

Thermal Background Contrast

Infrared detection depends entirely on temperature contrast. A human body registers clearly against a cold wall. That same body disappears against a sun-baked window. Planners must evaluate the thermal backdrop of the target area during all times of day.

The volumetric Containment Model

Microwave sensors operate volumetrically. Their signals bounce off hard surfaces and penetrate soft materials. Designers use the volumetric containment model to calculate signal bleed. Stopping microwave leakage requires dense structural boundaries like brick or concrete.

Key Categories or Variations

Different technologies require distinct placement strategies. Applying PIR logic to a microwave unit guarantees systemic failure.

Sensor Technology Comparison

Technology	Detection Method	Strengths	Vulnerabilities	Ideal Placement
PIR	Thermal change	Low power, ignores glass	Heat sources, slow movement	Corners, perpendicular to paths
Microwave	Radar reflection	Penetrates obstacles, sensitive	Bleeds through walls, moving fans	Large open warehouses
Ultrasonic	Sound disruption	Navigates around partitions	Air currents, loud noises	Restrooms, office cubicles
Dual-Tech	PIR + Microwave	Extremely low false alarms	Higher cost, complex setup	High-risk commercial spaces

Decision Logic for Placement

Selecting the right device limits subsequent errors. Dual-technology sensors require both PIR and microwave triggers simultaneously. They work best in hostile environments like drafty garages. Ultrasonic devices excel in complex rooms with many visual obstructions.

Detailed Real-World Scenarios Common Motion Sensor Placement Mistakes

Abstract principles require practical application. Examining real-world failures highlights the mechanics of common motion sensor placement mistakes.

The HVAC Proximity Failure

Technicians often mount sensors near ceiling air vents. Forced warm air creates rapid thermal fluctuations directly across the sensor lens. The device interprets this sudden heat column as a moving human. Relocating the unit three feet away resolves the false alarms entirely.

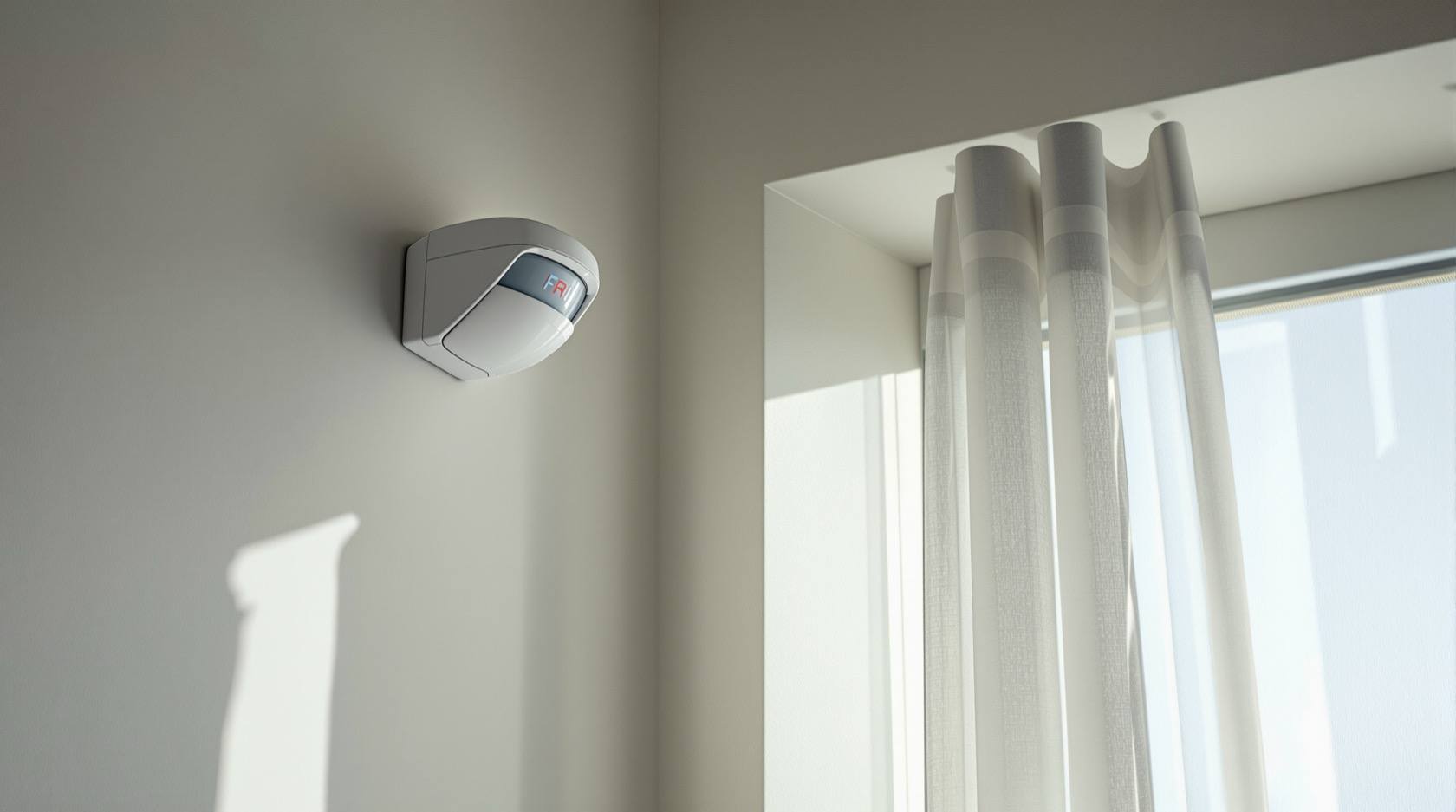

The Window Facing Trap

Pointing a PIR sensor at a large window causes dual failures. Sunlight entering the room blinds the thermal array. Furthermore, the glass blocks infrared signatures from anyone outside. Intruders can break the glass without triggering an alarm if they remain thermally shielded.

The Hallway Tunnel Effect

Hallways seem like simple detection zones. Installers frequently place a sensor at the far end, facing straight down the corridor. Intruders walking directly toward the lens generate minimal zone-crossing events. Placing sensors on the side walls guarantees lateral crossing and immediate detection.

The Pet Allowance Miscalculation

Pet-immune sensors ignore objects under a specific weight limit. Cats defeat this immunity by climbing furniture. A sensor calculates mass based on the thermal footprint entering its upper zones. Keeping furniture away from the detection perimeter is essential for pet owners.

Planning, Cost, and Resource Dynamics

Poor placement decisions carry significant financial consequences. Hardware costs represent only a fraction of the total system lifecycle expense.

Financial Impact of Placement Errors

Cost Category	Direct Expense	Indirect Consequence
Initial Setup	Equipment and labor	Minimal
False Alarms	Municipal fines	Police response degradation
Relocation	Truck rolls, hourly wages	System downtime
Energy Waste	High utility bills	Shorter bulb lifespan

Resource Allocation Strategies

Investing more time in initial site surveys reduces long-term maintenance costs. Dispatching a technician to move a poorly placed sensor ruins profit margins. Commercial entities face steep fines from local police departments for chronic false dispatches. Careful planning mitigates these financial risks completely.

Tools, Strategies, and Support Systems

Modern installers utilize specialized tools to eliminate guesswork. Relying solely on visual estimation leads to common motion sensor placement mistakes.

Precision Mapping Tools

Laser levels project the exact boundaries of a sensor’s field of view. Installers use these beams to identify physical obstructions. Thermal imaging cameras reveal hidden heat sources like uninsulated pipes. Identifying these thermal columns prevents future false triggers.

Software and Walk Testing

Manufacturers provide coverage calculation software. Engineers input room dimensions to generate predictive detection maps. Walk testing remains the ultimate validation method. Technicians must mimic various intrusion speeds and angles to confirm system responsiveness.

Ongoing Calibration Tactics

Some sensors feature adjustable sensitivity potentiometers. Fine-tuning these dials prevents oversaturation in small rooms. Masking tape or plastic blinders can physically limit the lens angle. Blocking out problem areas physically is often faster than relocating the entire device.

Risk Landscape and Failure Modes

Every installation contains inherent vulnerabilities. Categorizing these risks allows integrators to build resilient networks.

Compounding Security Vulnerabilities

A single dead zone compromises an entire facility. Intruders map out detection blind spots before attempting a breach. Corner placement usually provides excellent coverage, but open doors can block the sensor’s view. Installers must walk the site considering the position of every moving architectural element.

Alarm Fatigue and System Abandonment

Frequent false alarms degrade user trust. Property managers eventually ignore notifications or disable the system entirely. Automation systems face similar issues. Lights turning off while people are working lead to immense frustration. Users will bypass intelligent systems if the placement fails to support natural human behavior.

Governance, Maintenance, and Long-Term Adaptation

Placement is not a static achievement. Environments evolve, requiring continuous system governance.

Environmental Degradation

Dust accumulates on sensor lenses over time. This layer of dirt insulates the thermal array, reducing effective range. Sunlight degrades plastic housings, causing micro-fractures that alter detection patterns. Regular cleaning schedules maintain baseline functionality.

Spatial Reconfiguration

Office managers frequently move desks and temporary partitions. A perfectly placed sensor becomes useless behind a newly installed whiteboard. Security teams must audit placement annually to account for structural changes. Adjusting units during renovations prevents gradual system decay.

Measurement, Tracking, and Evaluation

Evaluating system health requires concrete metrics. Relying on anecdotal complaints obscures systemic issues.

Leading and Lagging Indicators

A lagging indicator is a police fine for a false alarm. A leading indicator is a high frequency of localized sensor trips during off-hours. Tracking the specific zones that trigger frequently helps identify common motion sensor placement mistakes before they incur costs.

Documentation and Logging

Robust documentation sets the foundation for troubleshooting.

• Zone Maps: Detailed floor plans highlighting exact sensor locations and coverage cones.

• Event Logs: Digital records showing time, date, and specific device triggers.

• Environmental Notes: Observations regarding HVAC schedules or natural light patterns.

Engineers cross-reference event logs with HVAC run times to diagnose thermal interference accurately.

Common Misconceptions and Oversimplifications

Industry myths persist despite overwhelming evidence to the contrary. Correcting these fallacies improves general installation quality.

“Higher is Always Better”

Many believe mounting sensors at extreme heights maximizes coverage. Most lenses feature a downward tilt optimized for eight to ten feet. Placing them fifteen feet high aims the primary detection zones at the opposite wall, ignoring the floor completely.

“More Sensors Equal Better Security”

Flooding a room with sensors creates cross-interference. Active technologies like microwaves can blind each other if frequencies overlap. Strategic limitation always outperforms raw hardware volume.

“All Motion is Detected Equally”

PIR units struggle with slow, creeping movements. Sudden, drastic temperature changes trigger them instantly. Security protocols must account for diverse intrusion tactics. Relying on a single sensor type leaves the system vulnerable to specific bypass methods.

Ethical, Practical, or Contextual Considerations

Detection systems operate within complex human environments. Balancing security needs with privacy expectations requires careful judgment.

Privacy and Psychological Comfort

Installing sensors in private areas demands discretion. While motion sensors do not capture visual images, they track behavior patterns. Employees may feel surveilled if sensors track desk occupancy excessively. Transparent communication about data usage mitigates workplace anxiety.

Aesthetic Integration

Luxury residential projects demand invisible technology. Architects despise bulky plastic boxes ruining wall designs. Integrators must find ways to hide sensors within custom millwork or ceiling features. Concealment often restricts the field of view, requiring highly precise placement calculations.

Conclusion

Mastering spatial dynamics separates professional integrators from amateurs. Analyzing common motion sensor placement mistakes reveals a deep intersection of physics, architecture, and human behavior. Technology cannot overcome poor geometric planning. Successful systems rely on intentional, well-calculated design choices.

Integrators must respect the limits of their chosen hardware. Adapting to the thermal and structural realities of a space ensures long-term reliability. Environments will constantly shift and change over time. Maintaining system integrity requires vigilance, precise documentation, and a willingness to adapt to new spatial challenges.
